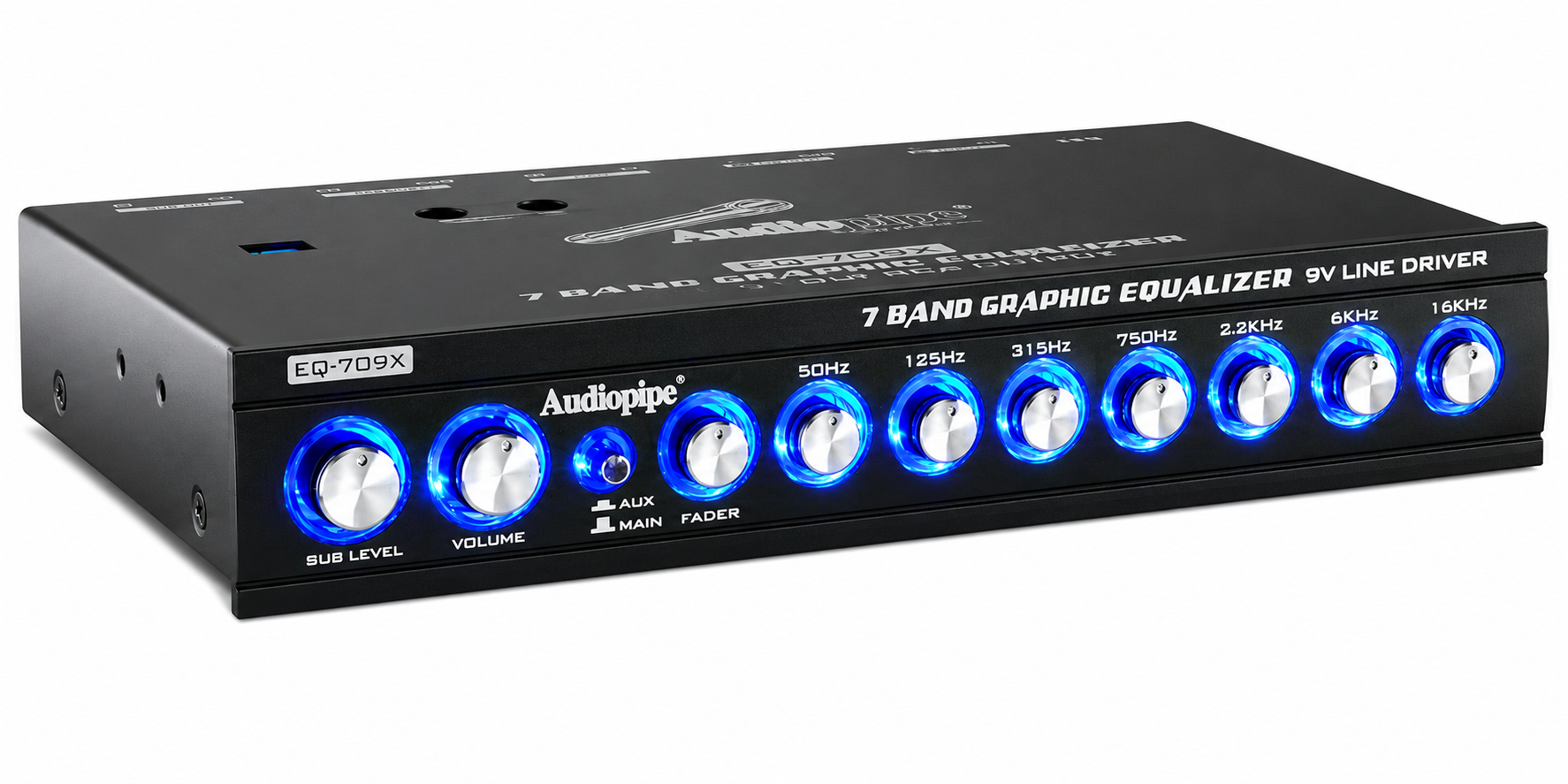

Audiopipe EQ-709X 7-Band In-Dash Graphic Equalizer Car Audio Preamp EQ
• Product Type: In-Dash Graphic Equalizer
• Equalizer Bands: 7
• Center Frequencies: 50 Hz, 125 Hz, 315 Hz, 750 Hz, 2.2 kHz, 6 kHz, 16 kHz
• Boost/Cut: ±12 dB per Band
• Line Driver Output: 9V Max

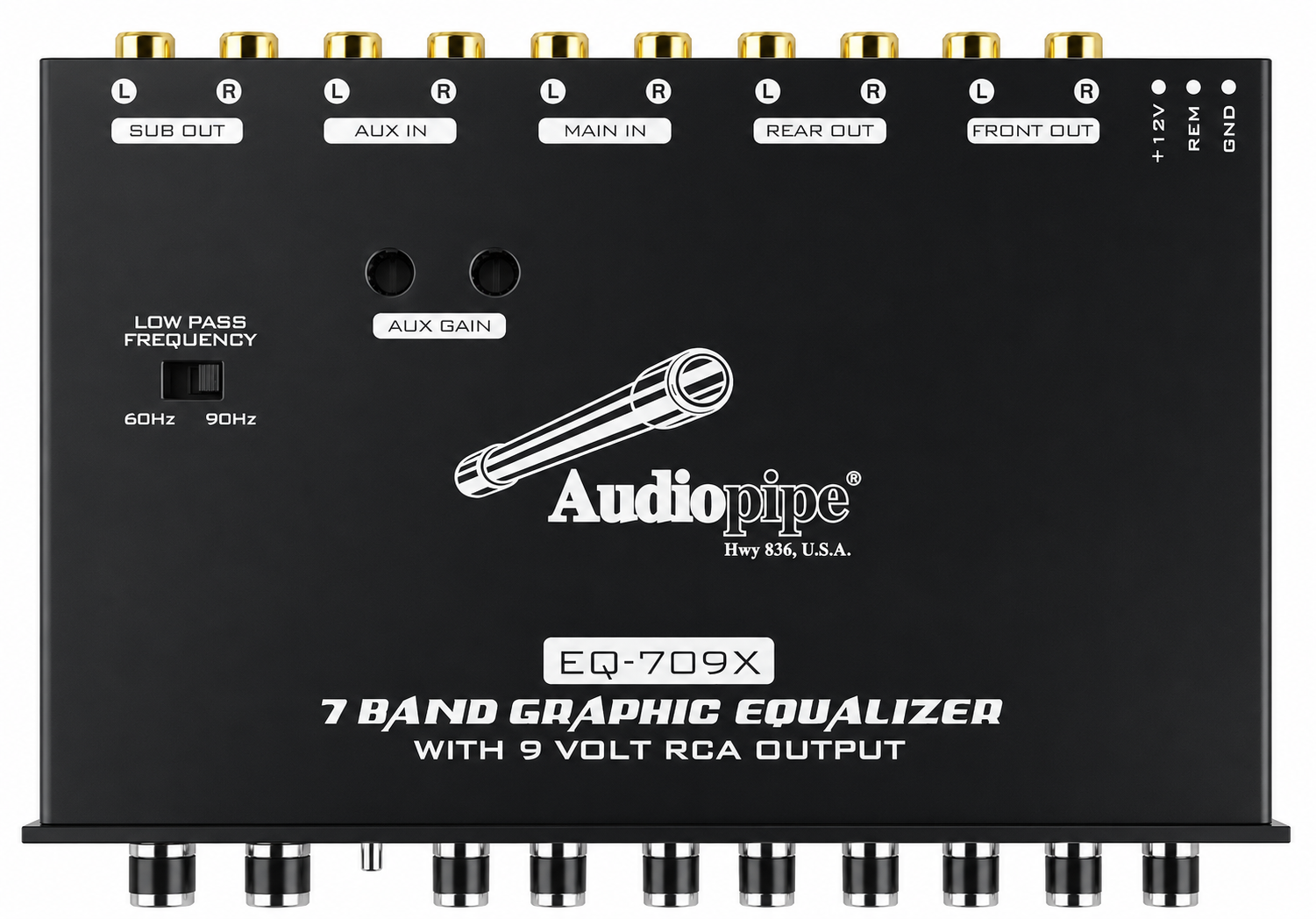

• RCA Outputs: 3 Stereo (Front, Rear, Subwoofer)
• RCA Inputs: Main & Auxiliary
• Subwoofer Crossover: Selectable 60 Hz / 90 Hz
• Frequency Response: 10 Hz – 50 kHz (±1 dB)
• Signal-to-Noise Ratio: 100 dB
• Total Harmonic Distortion (THD): 0.005%
• Input Sensitivity: 50 mV – 3V
• Input Controls: Adjustable Gain & Auxiliary Left/Right Sensitivity
• Connector Finish: Gold-Plated RCA Connectors
• Chassis Size: Universal 1/2-DIN
• Application: Car Audio Systems
• Country/Region of Manufacture: China
Package Includes
• 1 × Audiopipe EQ-709X 7-Band Graphic In-Dash Equalizer
• 1 × Power Harness
• Mounting Hardware
• User Manual
