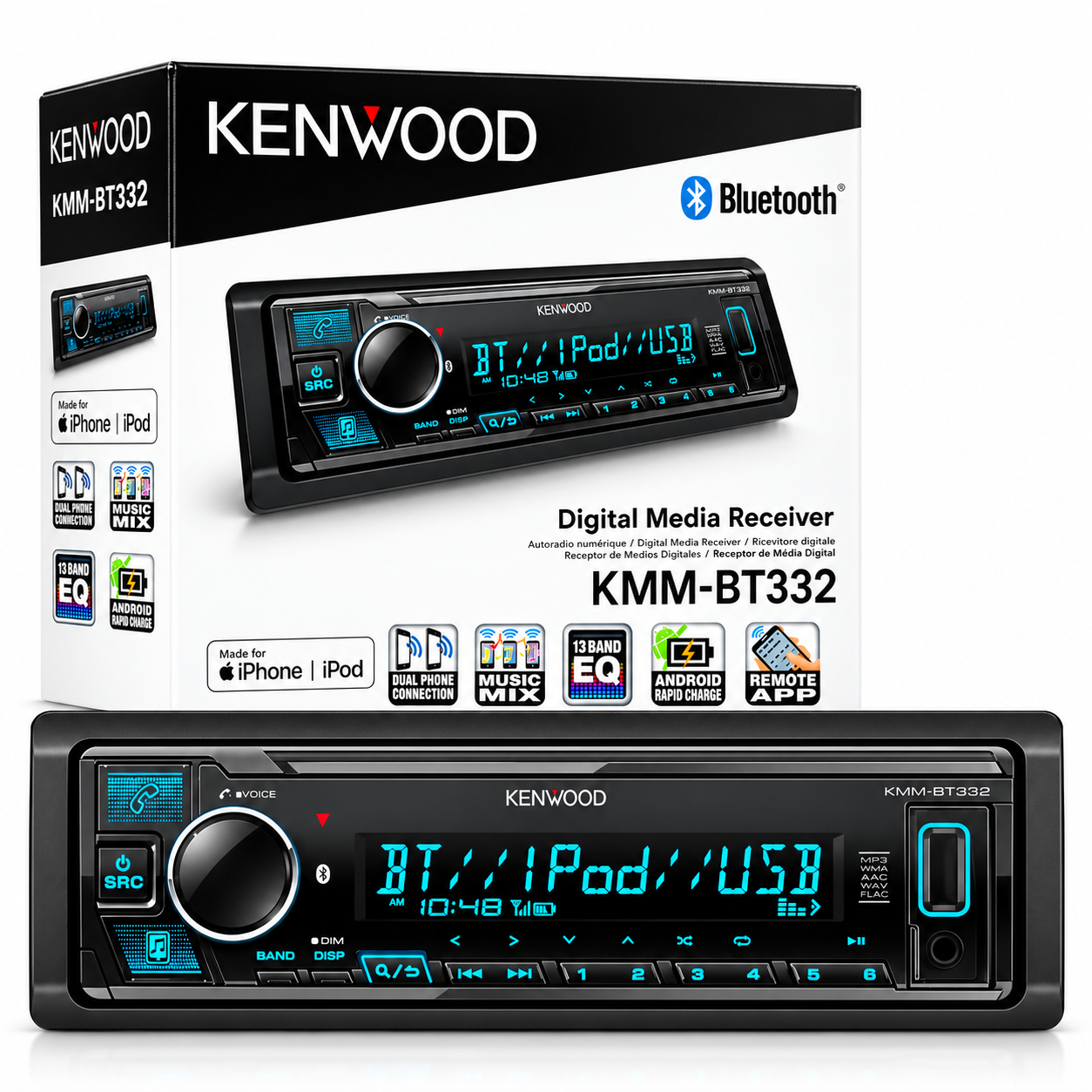

Kenwood KMM-BT332 Digital Media Car Stereo Bluetooth USB AUX 13-Band EQ

Kenwood KMM-BT332
Key Features:

• Product Type: Digital Media Receiver
• Chassis Type: Single-DIN, short chassis
• Bluetooth Version: 4.2
• USB: USB 1.1 / USB 2.0 High Speed
• AUX Input: Yes
• Maximum Power Output: 50W × 4
• Full-Bandwidth Power: 22W × 4 at less than 1% THD
• Speaker Impedance: 4–8 Ohms
• Equalizer: 13-Band
• Preamp Output Voltage: 2.5V
• Operating Voltage: 12V DC

Construction

• Compact single-DIN digital media receiver
• Short-depth chassis for easier installation
• Front USB input
• Front AUX input
• Built-in Bluetooth module
• Detachable faceplate design
• Designed for standard 12V automotive electrical systems

Features

• Bluetooth hands-free calling
• Bluetooth audio streaming
• USB music playback
• AUX input for compatible portable audio devices
• 13-band graphic equalizer
• Supports MP3, WMA, AAC, WAV, and FLAC files
• FLAC playback up to 96 kHz / 24-bit
• Bluetooth profiles include HFP, PBAP, A2DP, AVRCP, and SPP
• USB charging/output up to 5V / 1.5A

Dimensions

• Installation Width: 7-3/16 in / 182 mm
• Installation Height: 2-1/16 in / 53 mm
• Installation Depth: 3-15/16 in / 100 mm
• Net Weight: approximately 1.3 lb / 0.6 kg, including trim plate and mounting sleeve

Performance

• Maximum Output: 50W × 4
• Full-Bandwidth Output: 22W × 4
• Speaker Impedance: 4–8 Ohms
• Preout Level: 2.5V / 10 kOhm
• USB Frequency Response: 20 Hz–20 kHz
• USB Signal-to-Noise Ratio: 98 dB
• USB Dynamic Range: 93 dB
• Bluetooth Range: approximately 32.8 ft / 10 m line-of-sight
• 13-band EQ adjustment: ±9 dB per band

Applications

• Cars
• Trucks
• SUVs
• Compatible single-DIN aftermarket stereo installations
• Bluetooth hands-free calling and music streaming
• USB digital music playback
• Systems using external amplifiers or powered subwoofers

Included

• 1 × Kenwood KMM-BT332 Digital Media Receiver
• Mounting Sleeve
• Trim Plate
• Wiring Harness
• External Bluetooth Microphone
• Installation hardware/documentation

Note: The KMM-BT332 is a digital media receiver and does not have a CD player.
