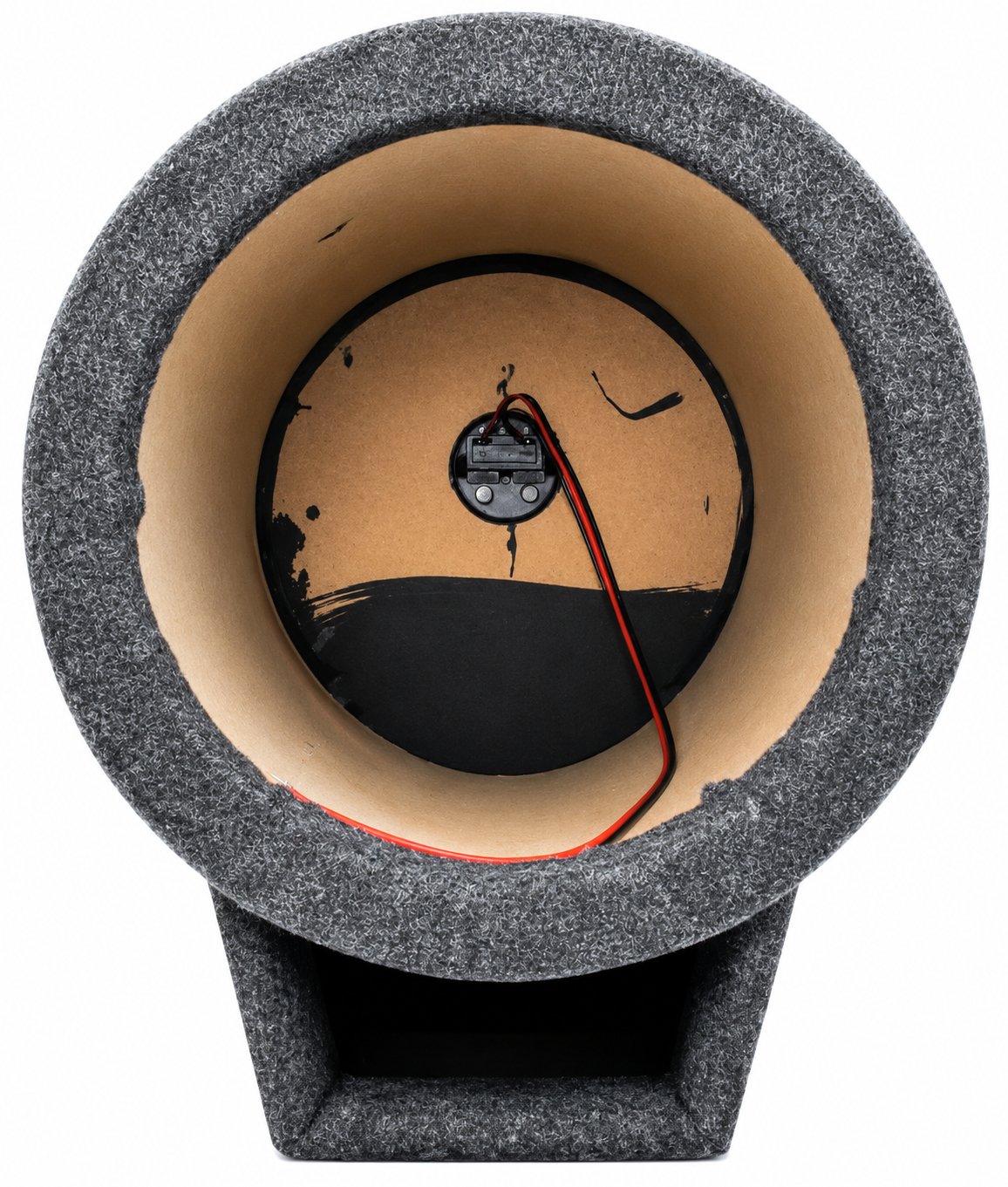

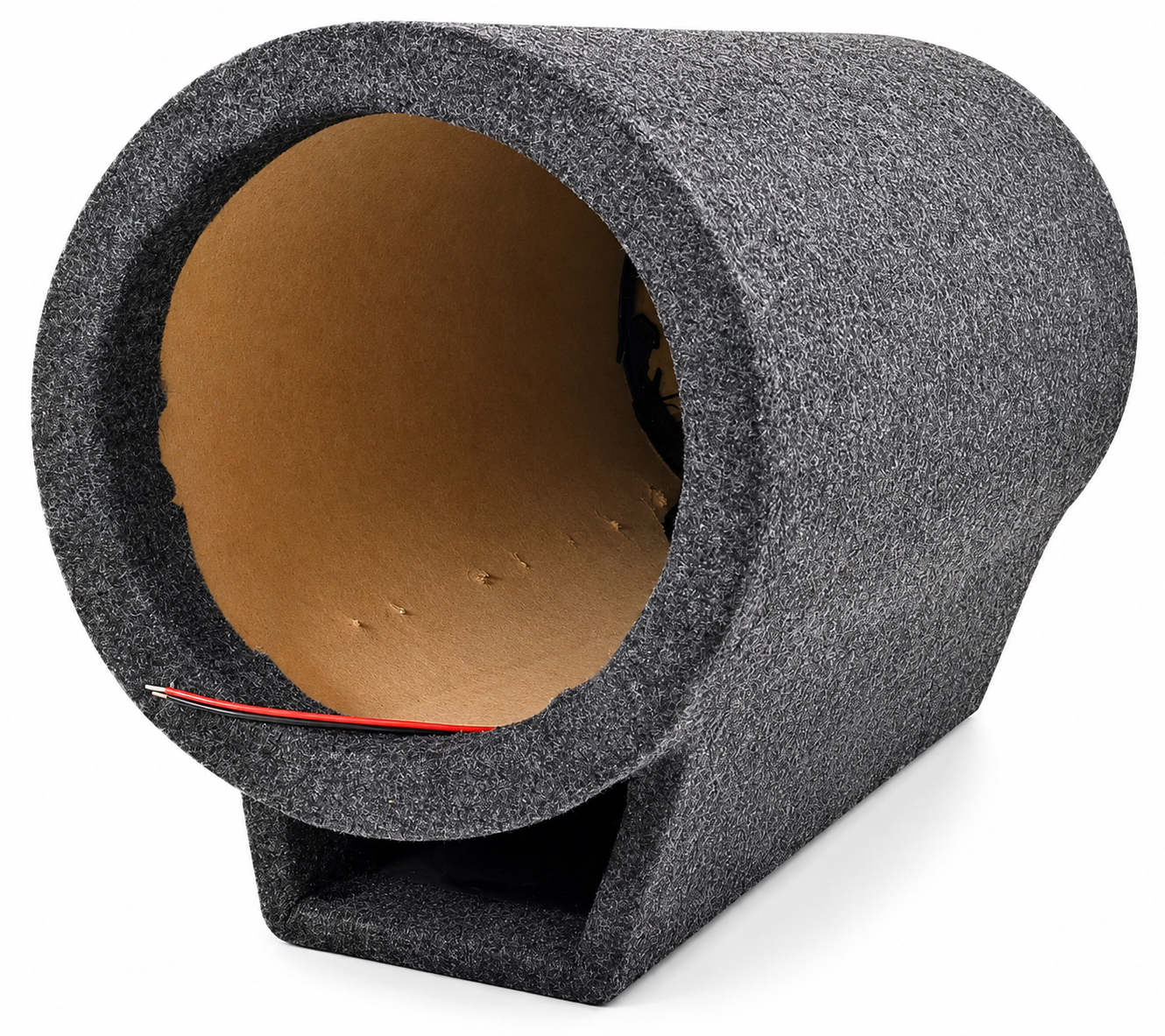

Nippon TUBO8 8" Car Audio Subwoofer Bass Tube Speaker Box
Nippon TUBO8
Key Features:
- Product Type: Empty Subwoofer Tube Enclosure
- Compatible Woofer Size: 8"
- Enclosure Type: Ported / Vented
- Number of Woofer Openings: 1
- Woofer Opening Diameter: 8.25"
- Internal Air Space: 0.52 cu. ft.
- Construction Material: 5/8" MDF
- Exterior Finish: Charcoal carpet
- Speaker Connection: Terminal cup
Construction
- Grade A 5/8" MDF construction
- Cylindrical/tube-style enclosure
- Charcoal carpet covering
- Integrated square-style vent running along the top of the enclosure

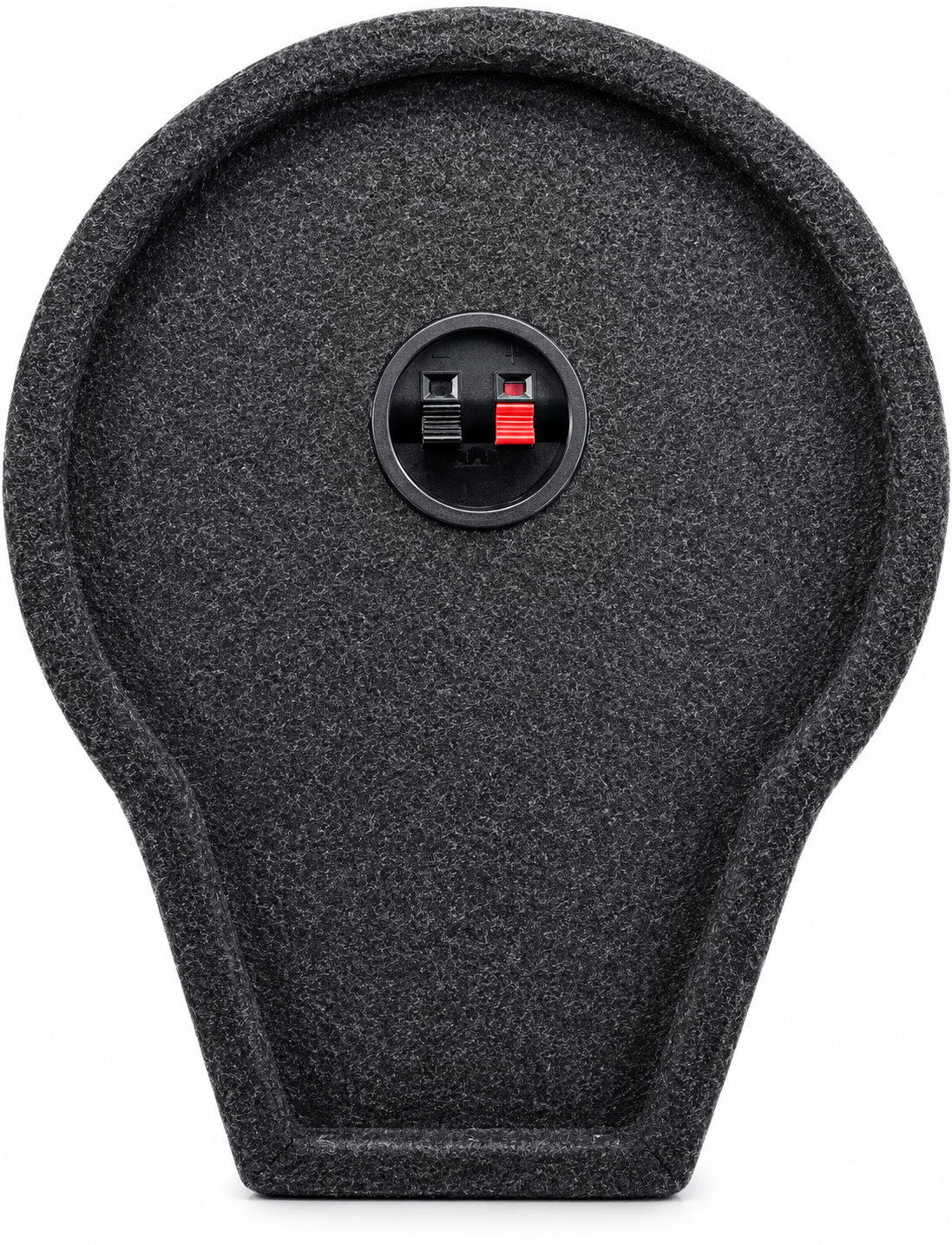

- Built-in terminal cup connectors
- Pre-cut 8.25" woofer mounting opening
Features
- Designed for a single 8" subwoofer
- Ported design for increased bass response
- Compact tube shape helps conserve vehicle cargo space
- Pre-built enclosure eliminates the need to construct a custom box
- 0.52 cu. ft. internal air volume
- Carpeted exterior helps protect the enclosure
- Built-in terminal cup simplifies speaker wiring
Dimensions
- Overall Length: 18"
- Overall Height/Diameter: 11" including vent
- Woofer Opening: 8.25"
- Internal Volume: 0.52 cu. ft.
- Product Weight: Approx. 7.75–8 lb
- Carton Dimensions: Approx. 19" × 13" × 10"
Performance
- Ported enclosure is designed to provide greater bass output than a comparable sealed enclosure
- 0.52-cu.-ft. internal volume should be matched with the recommended enclosure requirements of the selected subwoofer
- Terminal cup provides a convenient external amplifier-to-subwoofer connection
- Actual bass response and power handling depend on the subwoofer installed; the enclosure itself has no RMS or peak-power rating.
Applications
- Car audio systems
- Trucks and SUVs
- Compact vehicle installations
- Custom audio systems
- Single 8" subwoofer installations
Included
- 1 × Nippon TUBO8 Empty Ported Subwoofer Tube Enclosure
NOTE: Subwoofer and amplifier are not included.
