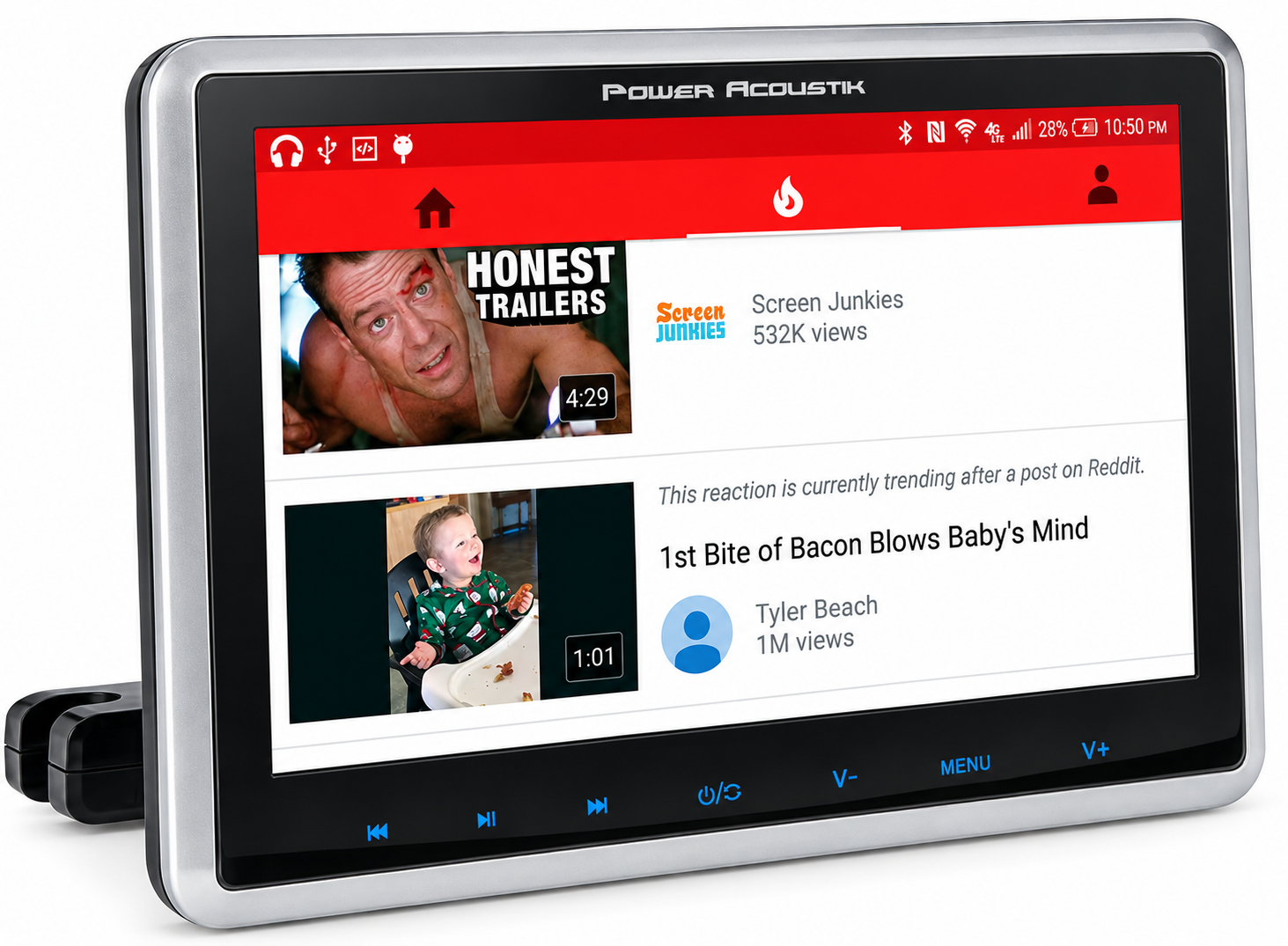

Power Acoustik PHD-101 10.3" Universal Headrest Monitor DVD Player
Power Acoustik PHD-101
Key Features:
- Product Type: Universal Headrest-Mounted DVD Player / Monitor
- Screen Size: 10.3"
- Display Type: TFT-LCD
- Resolution: 800 × 480
- Aspect Ratio: 16:9 Widescreen
- Brightness: 400 nits
- DVD Player: Rear-loading
- Video System: NTSC / PAL auto selection
- USB / SD Support: Yes
- Smartphone Mirroring: MHL MobileLink / HDMI
- IR Transmitter: Built-in
- FM Transmitter: Built-in
- Headphone Output: 3.5 mm
- Mounting: Universal headrest-post bracket
Construction
- 10.3" widescreen LCD display
- Rear-loading DVD mechanism

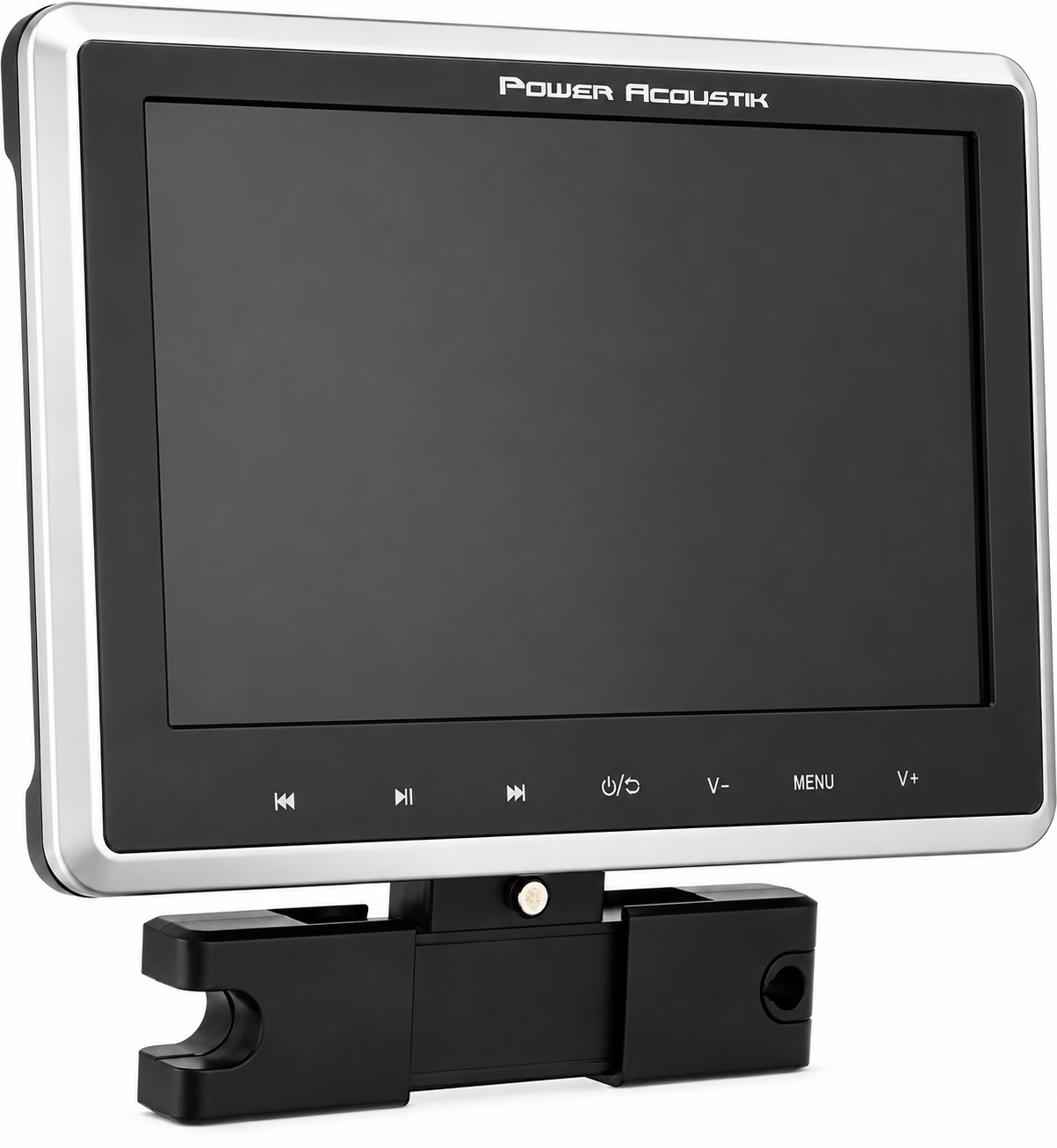

- Adjustable headrest-post mounting system
- Quick-release mounting bracket
- Adjustable pole spacing of 4.75"–8.25"
- Designed to attach to the vehicle's existing headrest posts rather than replace the complete headrest
Features
- Plays DVD/DVD-R/RW media
- Supports MP4 playback from USB and SD media
- USB and SD card support up to 32GB according to the original specification
- MHL MobileLink allows compatible smartphone/tablet screen mirroring
- Built-in FM transmitter sends audio to the vehicle's FM radio
- Built-in wireless IR transmitter supports compatible IR headphones
- RCA A/V input and output for external sources or an additional monitor
- Auxiliary A/V input for game consoles or personal media devices
- 3.5 mm wired headphone output
- 400-nit screen brightness
Dimensions
- Screen: 10.3"
- Mounting Pole Spacing: 4.75"–8.25"
Power Acoustik's current product page does not provide reliable overall chassis dimensions or product weight, so I recommend leaving those listing attributes unspecified rather than using third-party estimates.
Performance
- 800 × 480 native widescreen resolution
- Supports DVD/RW playback up to 720p source material
- Multiple playback options through DVD, USB and SD card
- Audio can be routed through the vehicle's FM system, compatible IR headphones, or wired headphones
- A/V output allows connection to an additional display
- Smartphone mirroring requires a compatible MHL/HDMI interface cable, sold separately
Applications
- Rear-seat vehicle entertainment
- Movies and digital-media playback
- Smartphone screen mirroring
- Connecting compatible game consoles or personal media devices
- Cars, trucks, SUVs and other vehicles with compatible dual-post headrests
Because headrest-post dimensions vary, the vehicle's post spacing should be checked before installation.
Included
Power Acoustik identifies/includes:
- 1 × PHD-101 Headrest Monitor/DVD Player
- Headrest mounting bracket/hardware
- Headrest mount adapters
- Remote/game control
- Game CD
- A/V input cross-connect cable
- A/V extension cable
