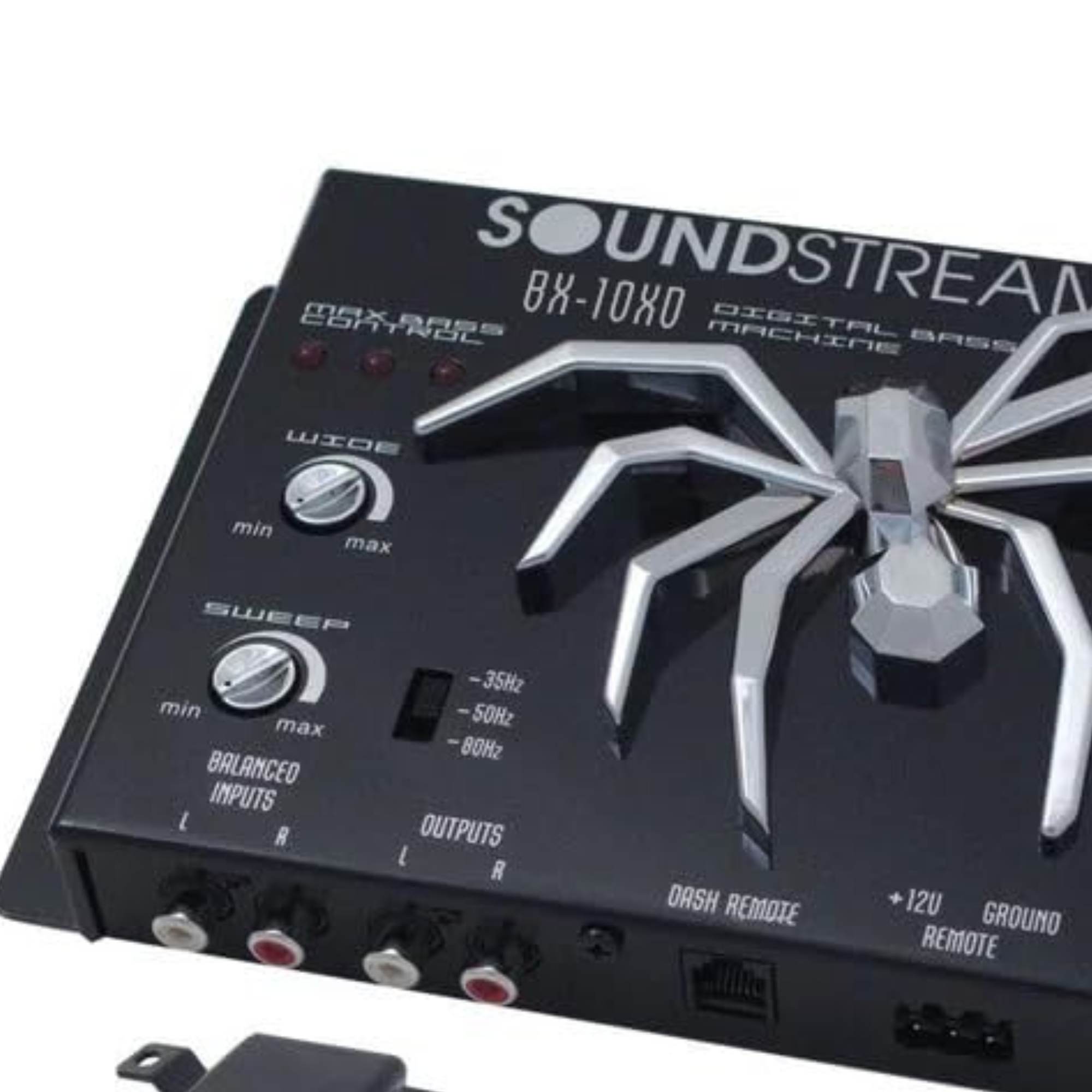

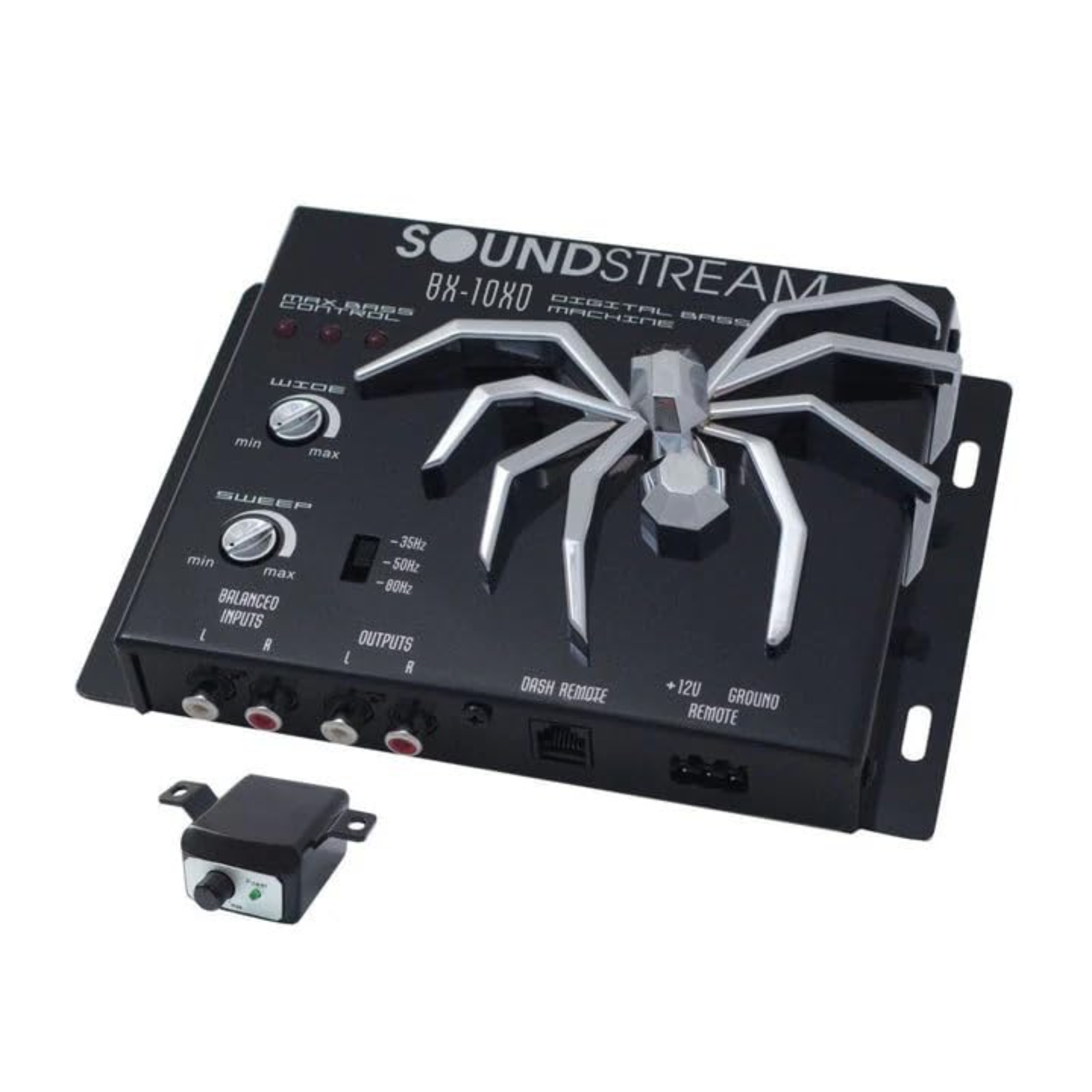

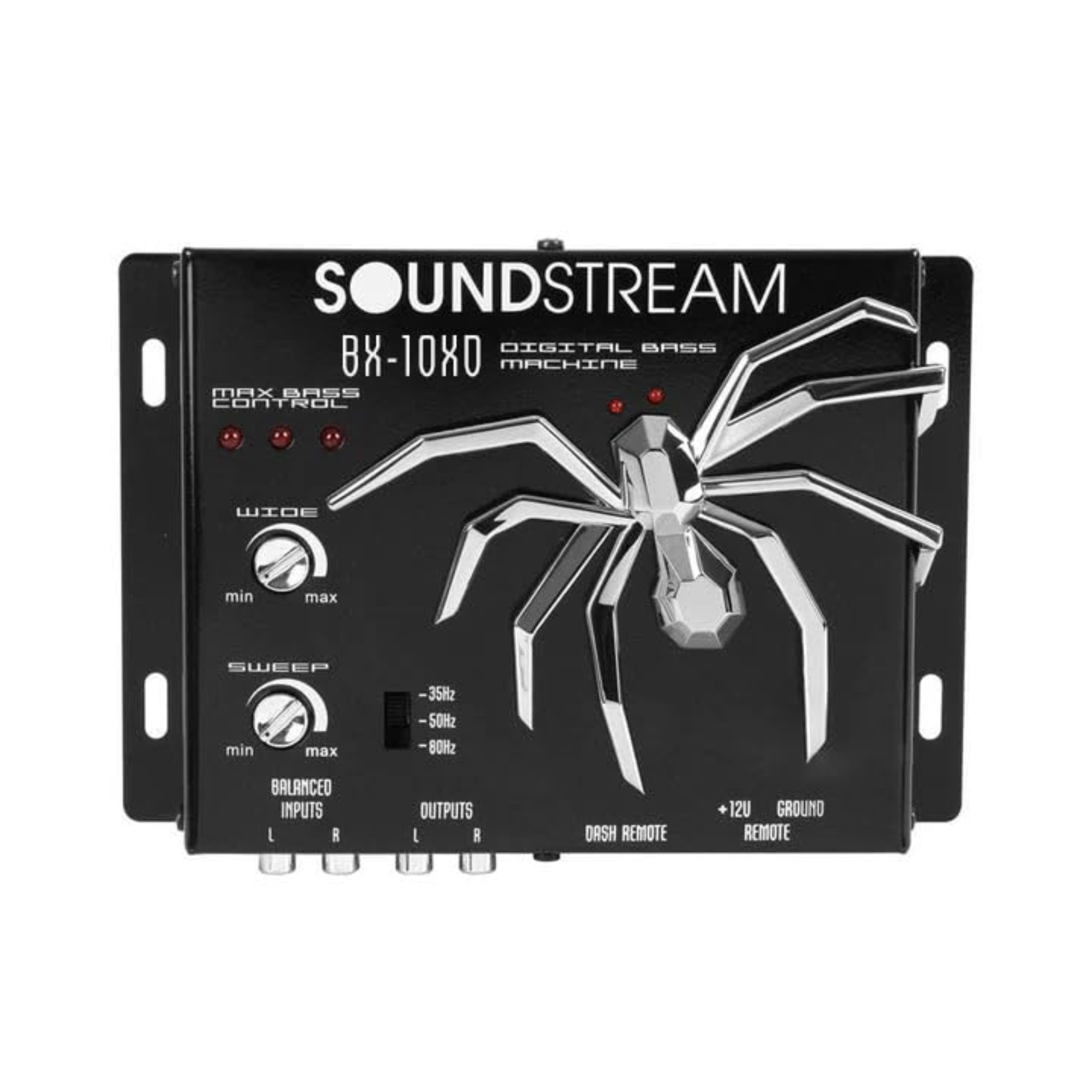

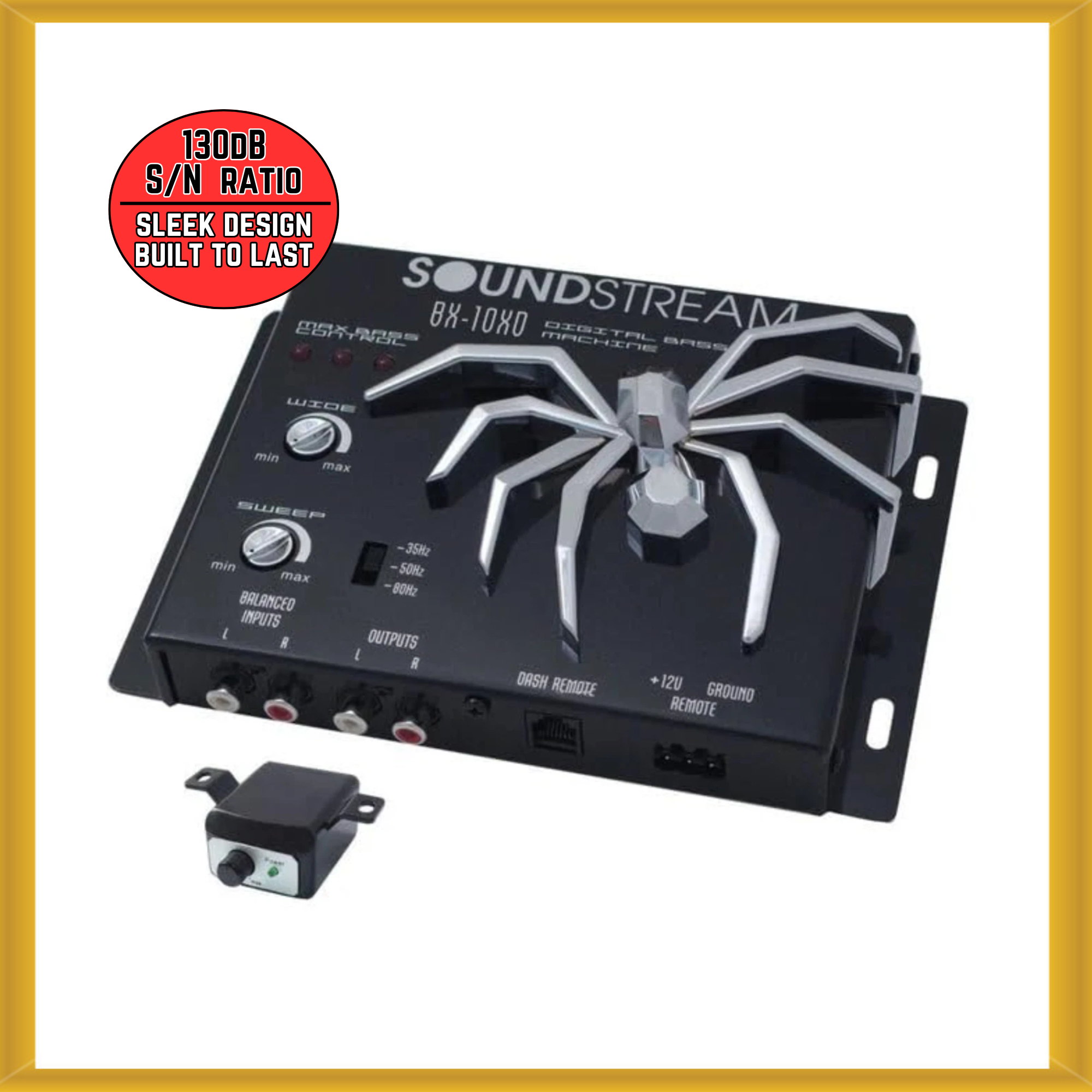

Soundstream BX-10X D Car Audio Bass Restoration Processor with Remote Control

Soundstream Car Audio Bass Restoration Processor with Remote Control
Model: BX-10X D
Digital Bass Processor
Powerful Bass Enhancement
Real-Time Control with Remote
Perfect for Aftermarket Systems
Sleek Design, Built to Last

General Function
Digital Bass Reconstruction / Bass Booster Processor
Designed to enhance low-frequency content lost in recordings and improve system bass response.

Controls & Features
Dash-mount gain/bass control (remote included)
Bass Restoration Lighted Display
Parametric Bass Control (adjust center frequency and width)
Variable Boost Q (shape of the filter curve)
Selectable grounding mode (balanced/unbalanced)
PWM high-headroom power supply for clean processing

Electrical & Audio Specs
Frequency Response: ~10 Hz – 100 kHz
Total Harmonic Distortion (THD): ~0.003%
Signal-to-Noise Ratio: ~130 dB
Balanced Signal Input Capability: up to ~15 V
Output Level: up to ~13.5 V peak
Balanced Input Noise Rejection: ~60 dB
Bass Filter & Boost Controls
Subsonic Filter Options: ~35 Hz, 50 Hz, 80 Hz
Selectable Output Voltages: ~2.5 V, 5 V, 7.5 V, 10 V
Variable Boost Frequency Range: ~27 Hz – 63 Hz
Physical & Power Specs (based on typical BX series processor specs)
Dimensions: ~4-3/8″ (D) × 7″ (W) × 1-1/8″ (H)
Input Impedance: ~10 kΩ
Output Impedance: ~150 Ω
Power Draw: ~150 mA
Fuse Rating: ~1 A recommended

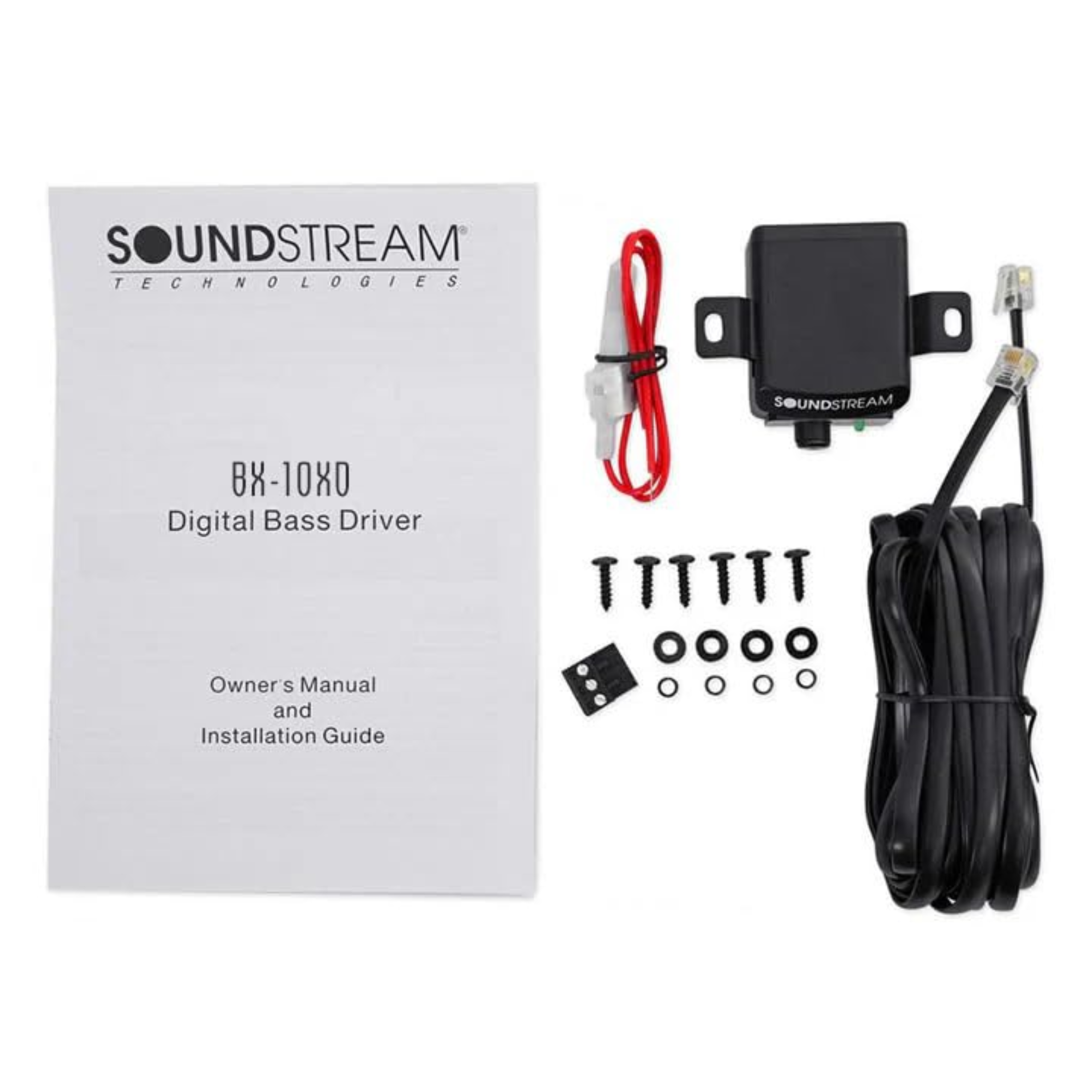

Included Accessories
Wired dash-mount remote bass/gain control
Lighted display interface
