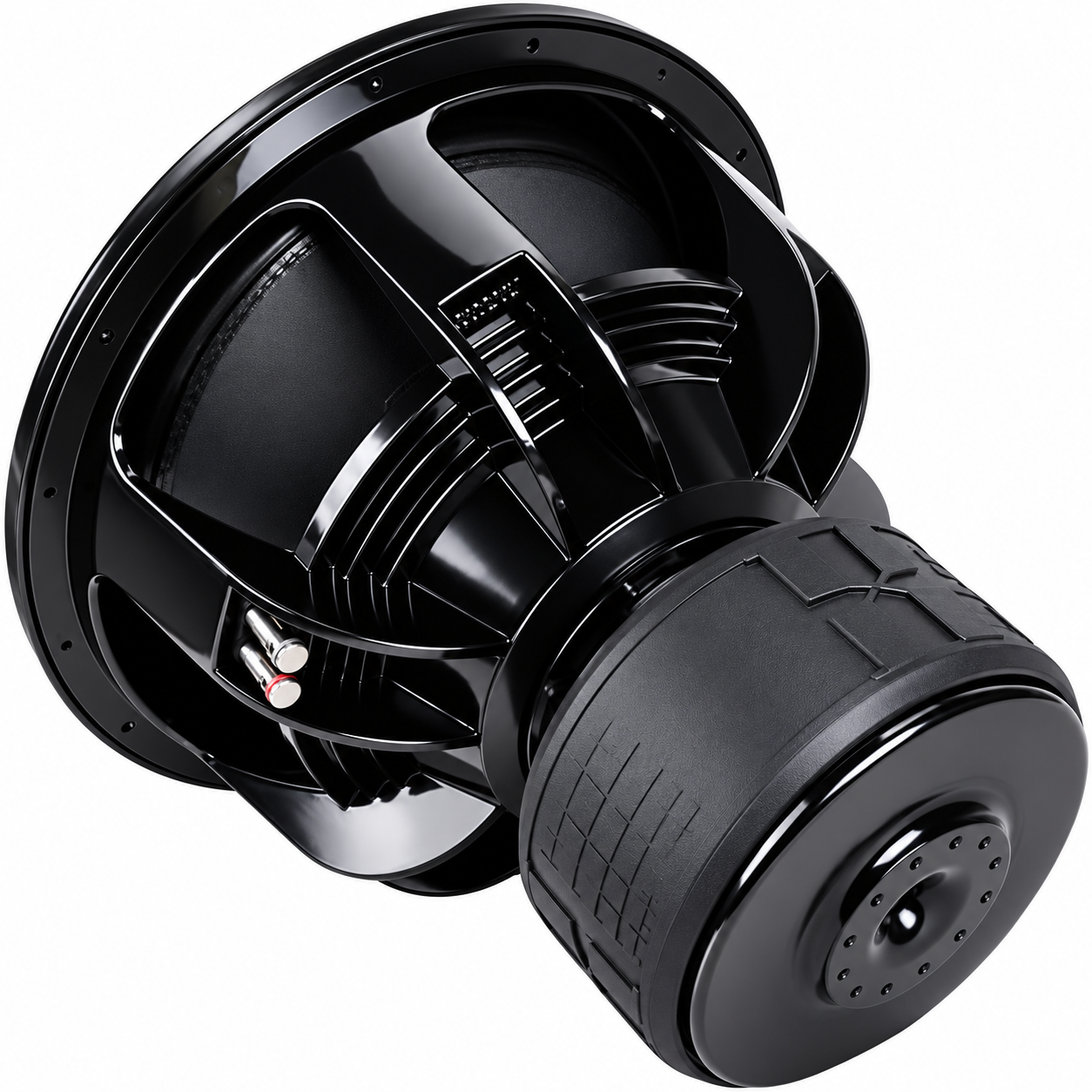

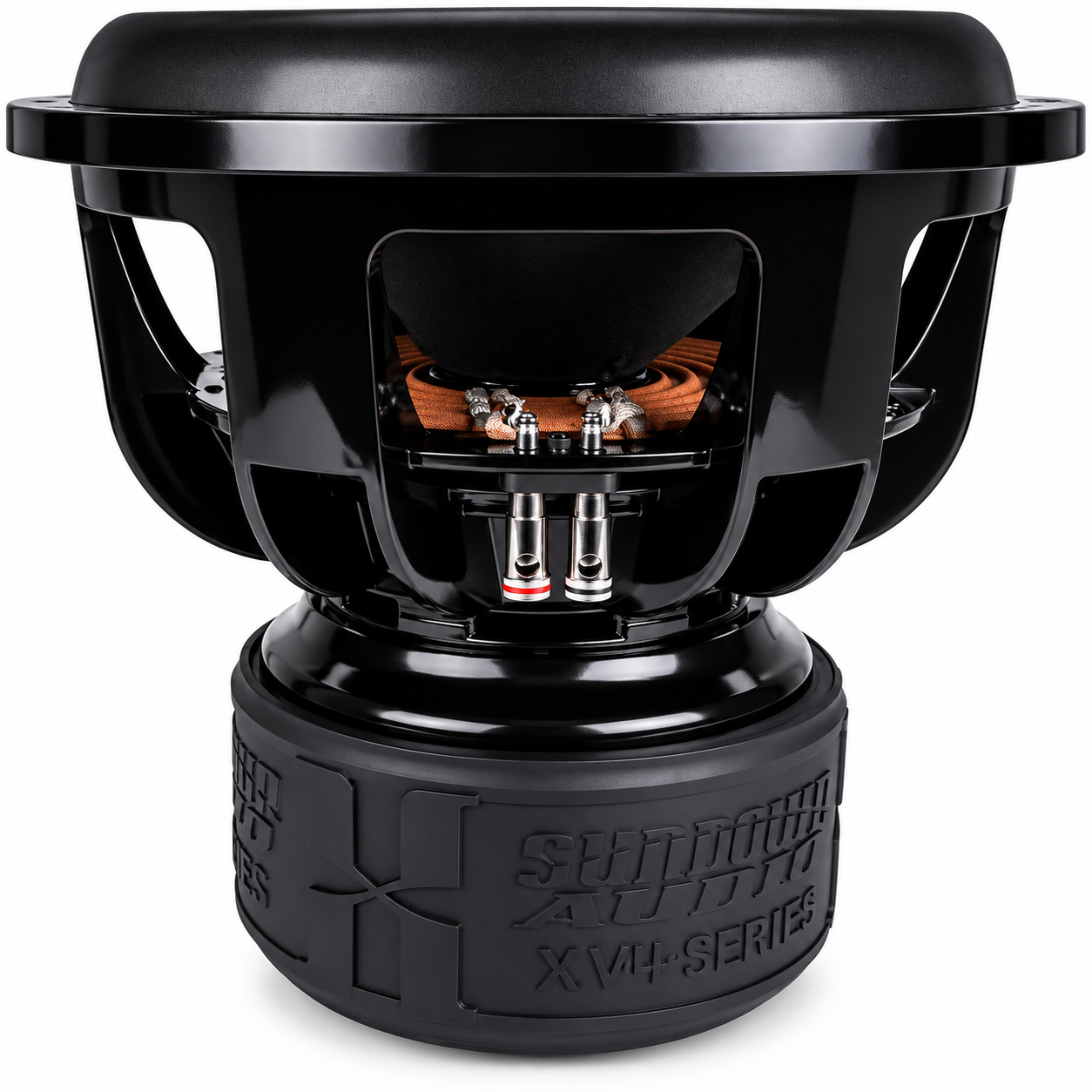

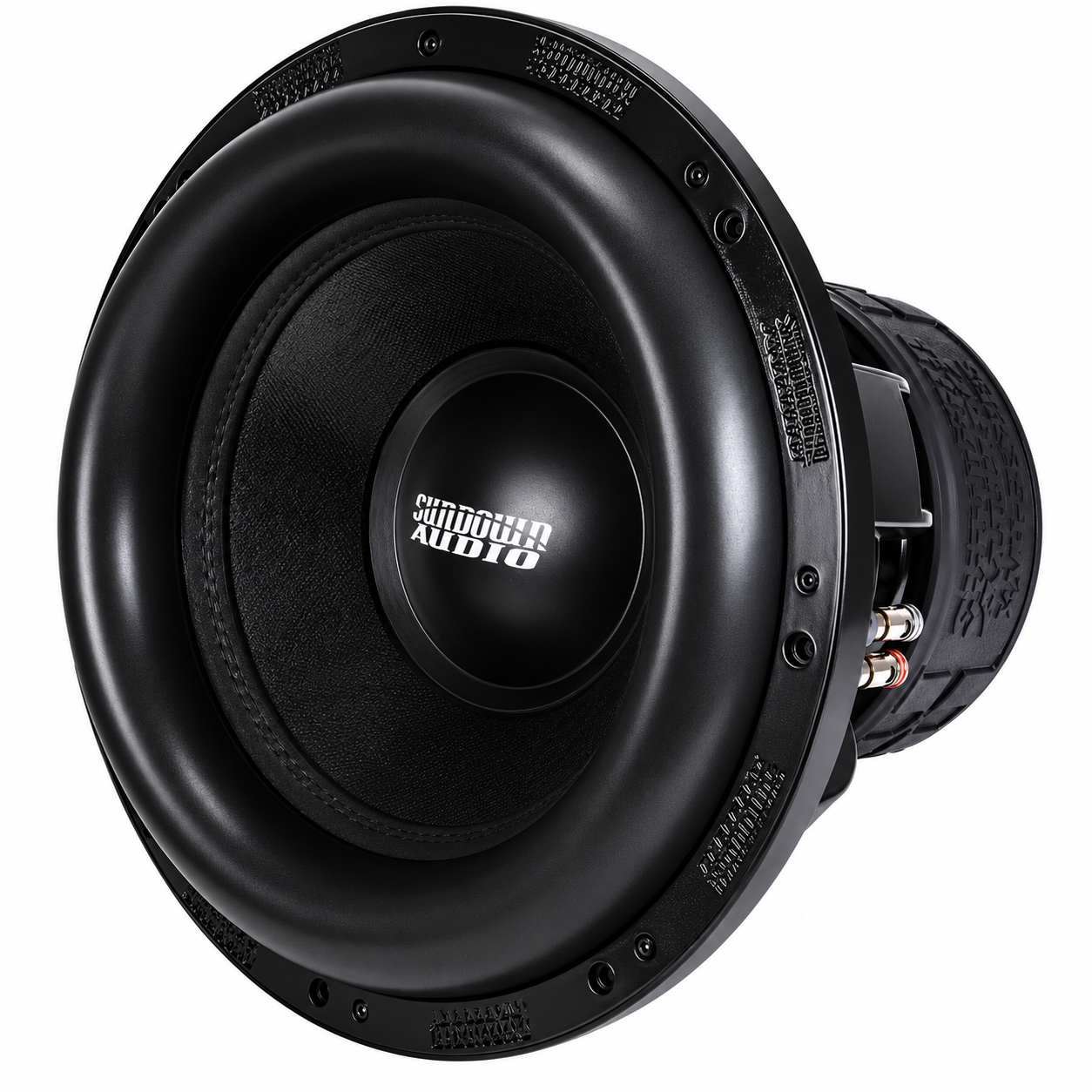

Sundown Audio XV415D2 X-Series V4 15" Subwoofer Dual 2 Ohm 2750W RMS
Sundown Audio XV415D2 X-Series V.4
Key Features:
- Product Type: High-Output Car Audio Subwoofer
- Subwoofer Size: 15 in
- Voice Coil Configuration: Dual 2 Ohm
- RMS Power Handling: 3000W
- Peak Power Handling: 6000W
- Xmax: 30 mm
- Sensitivity: 85.1 dB
- Resonant Frequency (Fs): 29.51 Hz
- Qts: 0.44
- Recommended Enclosure Type: Ported
- Sealed Enclosure: Not recommended
Construction
- Heavy-duty cast basket
- High-excursion suspension system
- Large motor structure
- Reinforced cone assembly
- Dual voice coil design
- High-temperature voice coil construction
- Built for high-power daily and competition-grade applications
Features
- 15-inch high-performance subwoofer
- Dual 2-ohm voice coils for flexible wiring options
- 30 mm linear Xmax
- High-output motor structure
- Designed for strong low-frequency output and SPL performance
- Suitable for large ported enclosures
- Competition-oriented X-Series design
Dimensions
- Overall Diameter: 15.51 in
- Cutout Diameter: 13.93 in
- Mounting Depth: 12.95 in
- Motor Diameter: 9.25 in
- Driver Displacement: 0.26 cu ft
Performance
- RMS Power: 3000W
- Peak Power: 6000W
- Xmax: 30 mm
- Sensitivity: 85.1 dB
- Fs: 29.51 Hz
- Vas: 40.41 L
- Qes: 0.49
- Qms: 4.08
- Qts: 0.44
- BL: 27.44
- Moving Mass (Mms): 538.24 g
- Recommended Ported Enclosure: 4.25 cu ft
- Recommended Port Tuning: 32 Hz
- Recommended Port Area: 68 sq in
Applications
- High-output car audio systems
- SPL competition builds
- Deep-bass daily-driver systems
- Custom ported enclosures
- Systems requiring a dual 2-ohm 15-inch subwoofer
- High-power aftermarket amplifier installations
Included
- 1 × Sundown Audio X-Series V.4 XV415D2 15-Inch Dual 2-Ohm Subwoofer
