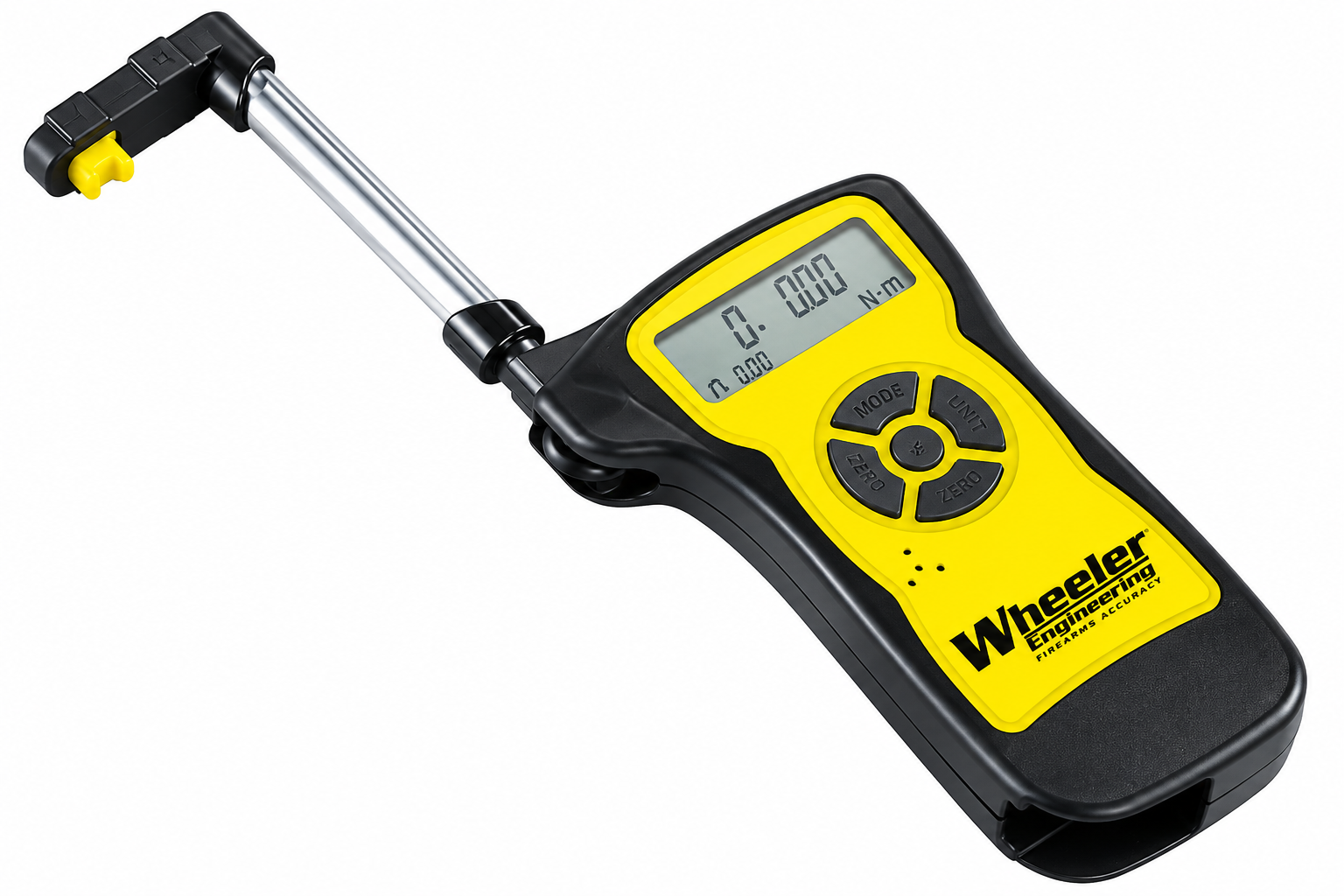

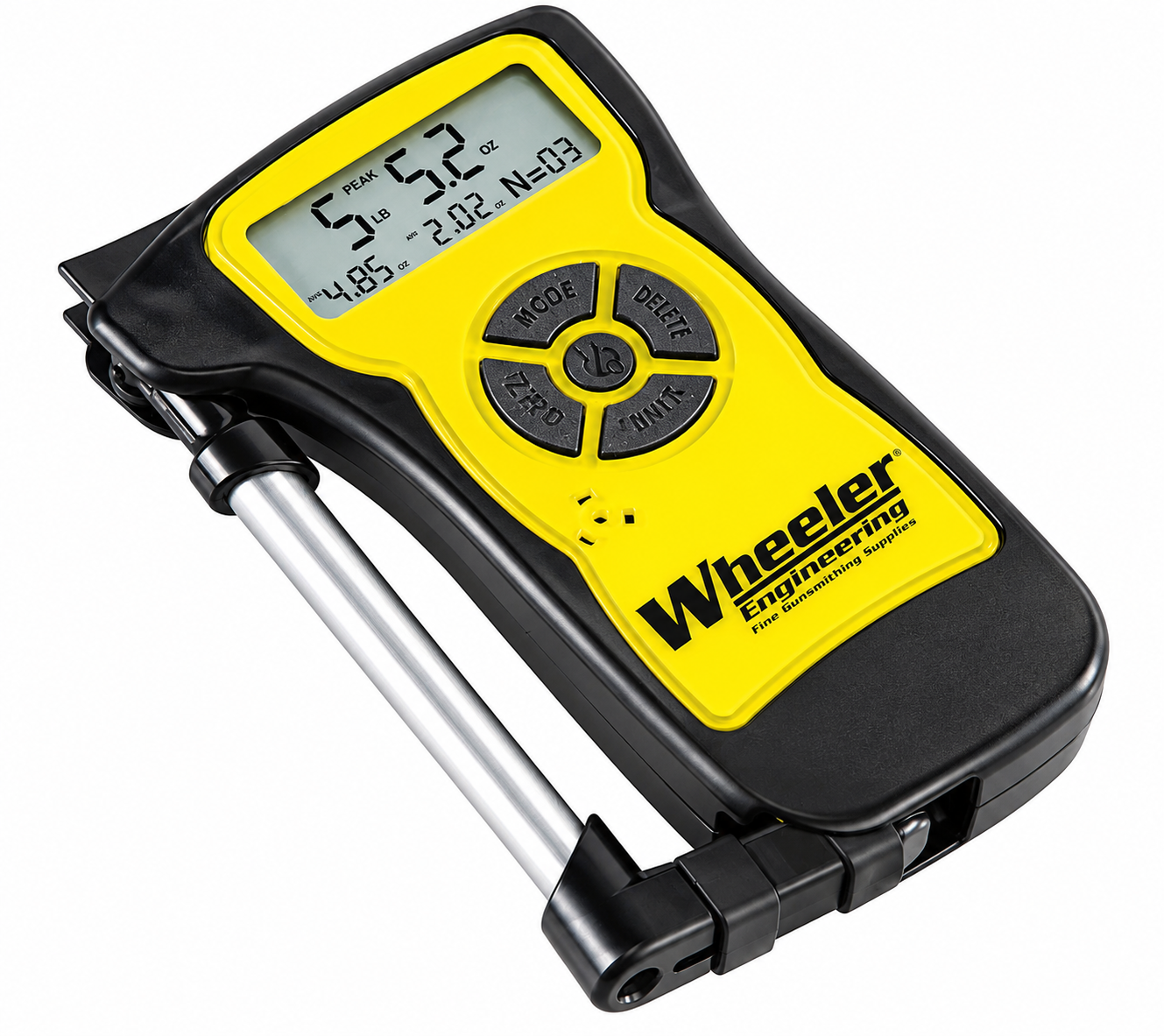

Wheeler Digital Trigger Pull Force Gauge 0-12 lbs Precision Measuring Tool

Wheeler Engineering 710904
Key Features:

• Product Type: Digital Trigger Pull Gauge

• Measurement Range: 0–12 lb

• Measurement Increments: 1 oz

• Accuracy: ±0.5%

• Display Type: Digital LCD

• Measurement Units: Pounds/Ounces and Kilograms

• Measurement Functions: Maximum, Minimum, Average, Peak, and Live

• Power Source: Battery Operated

• Battery Requirement: 2 AAA Batteries

• Color: Yellow / Black

• Operation: Electronic / Manual Pull

CONSTRUCTION

• Ergonomic over-molded housing for comfortable handling.

• Soft-touch control buttons for convenient operation.

• Integrated digital LCD screen for displaying measurements.

• Direct-contact load sensor for measuring trigger pull force.

• Foldable measuring arm protects the load sensor during storage.

• Adjustable measuring arm accommodates different trigger positions.

• Compact handheld design for portability.

• Protective foam-lined storage case included.

FEATURES

• Digital trigger pull gauge with a 0–12 lb measurement range.

• Measures trigger pull force in 1 oz increments.

• Digital LCD display provides easy-to-read measurements.

• Maximum, minimum, average, and live measurement functions.

• Peak measurement mode records trigger pull force.

• Direct-contact load sensor supports consistent measurements.

• Audible indicator tone for operational feedback.

• Low-battery indicator.

• Soft-touch buttons for easy control.

• Foldable measuring arm for compact storage.

• Includes a bladed trigger adapter for compatible safety-blade triggers.

• Includes a protective foam-lined carrying case.

DIMENSIONS

• Measurement Capacity: 0–12 lb

• Measurement Resolution: 1 oz

• Measurement Accuracy: ±0.5%

• Overall Length: Not Manufacturer-Verified

• Overall Width: Not Manufacturer-Verified

• Overall Height: Not Manufacturer-Verified

• Product Weight: Not Manufacturer-Verified

• Shipping Weight: Not Manufacturer-Verified

PERFORMANCE

• Measures trigger pull force from 0 to 12 lb.

• Provides digital readings in 1 oz increments.

• Supports multiple measurements for evaluating trigger pull consistency.

• Maximum and minimum functions record measurement extremes.

• Average function calculates readings from repeated measurements.

• Live mode displays force during measurement.

• Peak mode captures the highest recorded pull force.

• Direct-contact load sensor helps maintain measurement consistency.

• Digital measurement system eliminates the need to interpret an analog scale.

• Designed for repeatable trigger pull force testing.

APPLICATIONS

• Trigger Pull Weight Measurement

• Firearm Inspection and Maintenance

• Gunsmithing and Workshop Applications

• Trigger Performance Evaluation

• Trigger Pull Consistency Testing

• Rifle, Shotgun, and Handgun Trigger Measurement

• Firearm Equipment Testing

• Professional and Personal Tool Collections

INCLUDED

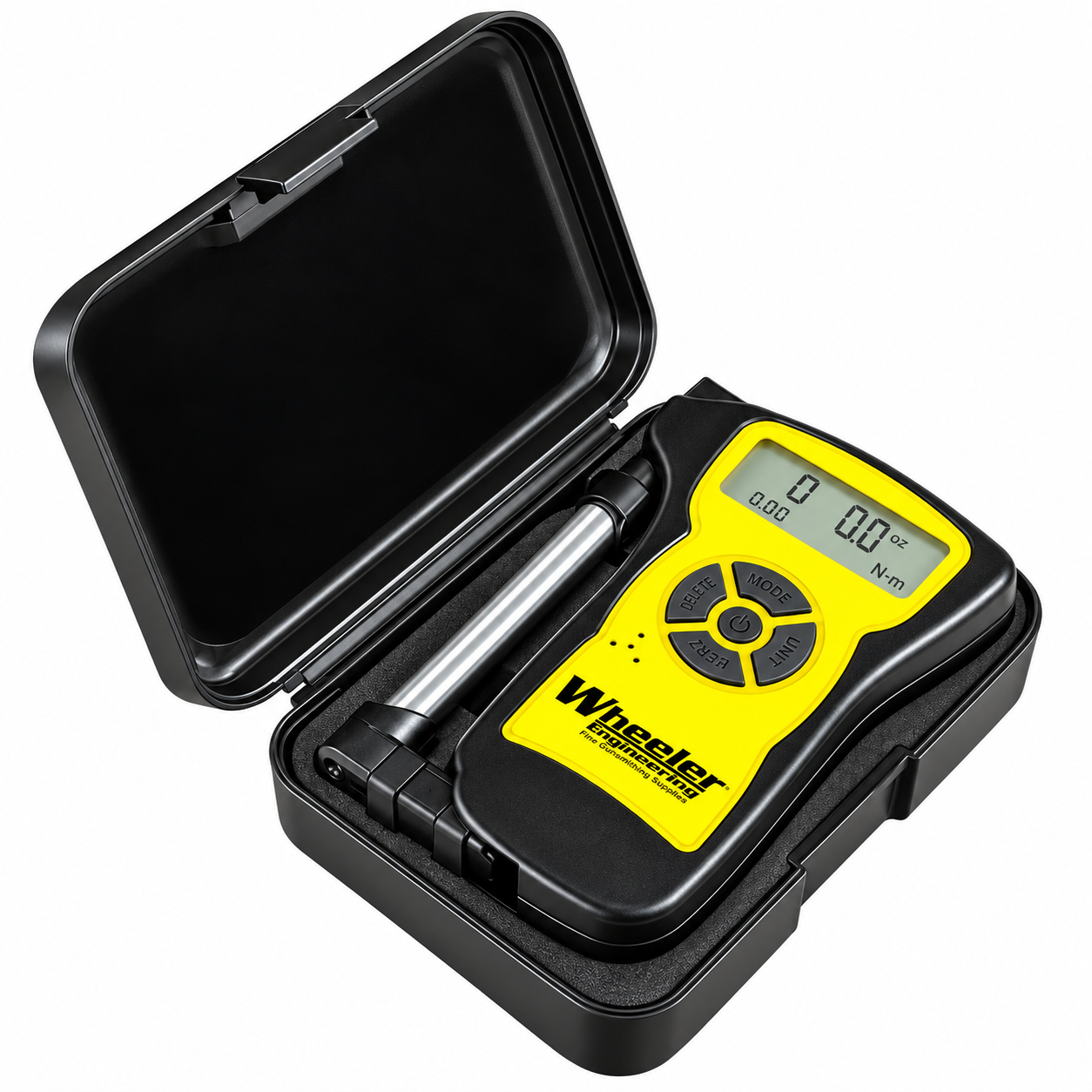

• (1) Wheeler Professional Digital Trigger Pull Gauge – Model 710904

• (1) Bladed Trigger Adapter

• (1) Foam-Lined Storage Case

Total: 1 Digital Trigger Pull Gauge Kit

NOTE: Batteries: Requires 2 AAA batteries (not included).
